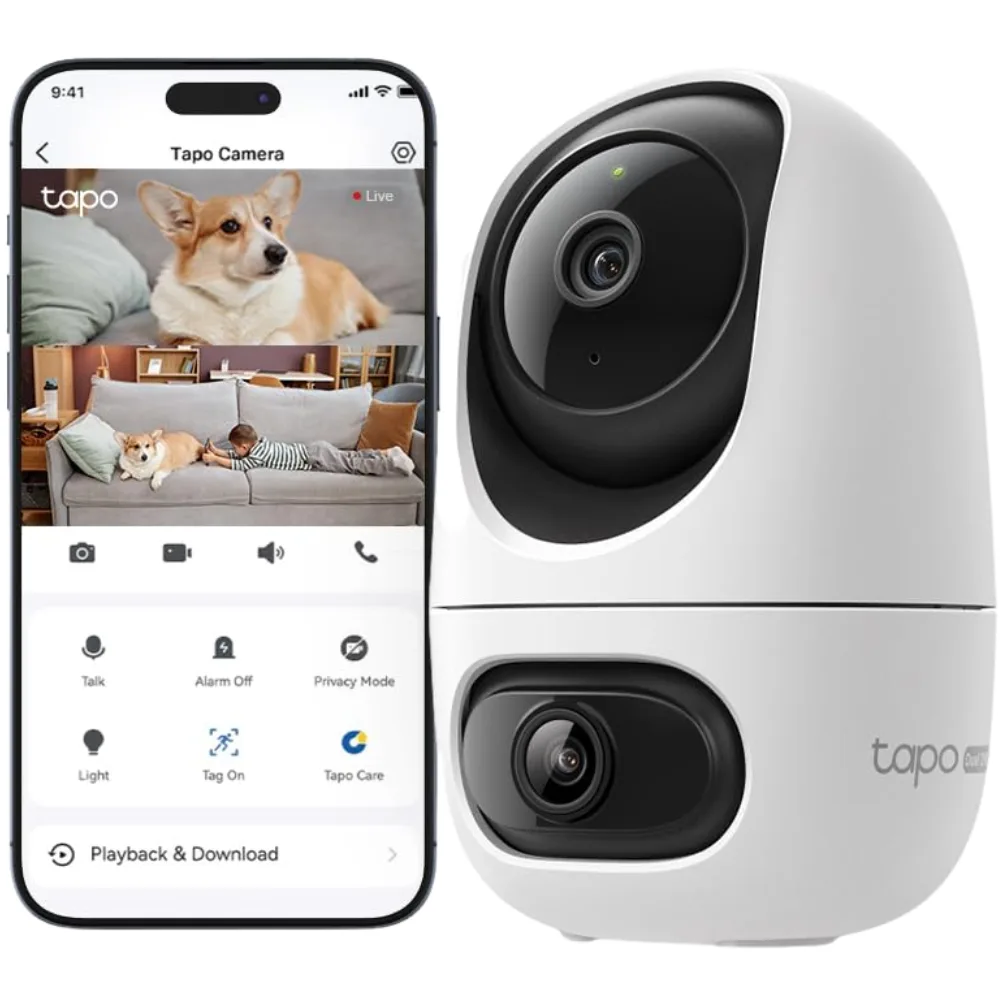

TP-Link Tapo C245D Dual Lens 2K Pan/Tilt Security Camera - White

TP-Link Tapo C245D Dual Lens 2K Pan/Tilt Security Camera

The TP-Link Tapo C245D is a dual-lens indoor security camera designed to monitor two areas simultaneously from a single device.

It combines a 2K 3MP wide-angle camera with a separate 2K 3MP telephoto pan/tilt camera, providing both a broad overview and detailed close-up monitoring.

With synchronized smart tracking, AI detection, 12m infrared night vision, two-way audio and expandable local storage, it offers flexible home monitoring without requiring multiple cameras.

Dual 2K 3MP Cameras

Both lenses capture video at up to 2304 × 1296 resolution, allowing the Tapo C245D to display a wide overview and a closer telephoto view at the same time.

• Wide-Angle Camera: 2K 3MP / 2304 × 1296
• Telephoto Camera: 2K 3MP / 2304 × 1296
• Maximum Frame Rate: Up to 15fps
• Image Enhancement: WDR

122° Wide-Angle Lens

The fixed wide-angle lens provides broad coverage for monitoring larger rooms and open spaces.

• Focal Length: 3.1mm
• Aperture: F1.6
• Diagonal Field of View: 121.8°
• Horizontal Field of View: 104.3°
• Vertical Field of View: 57.9°

The wide-angle lens can be manually adjusted vertically by approximately -15° to +15° during installation.

6mm Telephoto Pan/Tilt Lens

The second camera uses a 6mm telephoto lens to provide a narrower, more detailed view of people, pets and activity across the room.

• Focal Length: 6mm
• Aperture: F1.6
• Diagonal Field of View: 65°
• Horizontal Field of View: 56.5°
• Vertical Field of View: 30.6°

Motorized Pan & Tilt

The telephoto camera can automatically rotate to follow activity or move between selected monitoring positions.

• Pan Mechanical Range: 340°
• Pan Coverage: 360°
• Tilt Mechanical Range: 70°
• Tilt Coverage: 100°

Synchronized Smart Tracking

The two cameras can work together automatically. When the fixed wide-angle camera detects movement or a supported event, the pan/tilt telephoto camera can rotate toward the subject and track it.

• Synchronized Tracking: Yes
• Automatic Pan/Tilt Tracking: Yes
• Wide-to-Telephoto Coordination: Yes

One-Tap Smart Focus

Select an area from the wide-angle live view and the pan/tilt camera can quickly turn toward that location for a closer look.

• One-Tap Smart Focus: Supported

Up to 10.8× Digital Zoom

Both camera views support digital zoom for closer examination of objects and activity within the live view.

• Wide-Angle Digital Zoom: Up to 10.8×
• Telephoto Digital Zoom: Up to 10.8×

360° Patrol Mode

Patrol Mode allows the pan/tilt camera to automatically monitor selected areas throughout the room.

• Patrol Mode: Yes
• Preset Viewing Points: Up to 8
• Scheduled Patrol: Supported

Smart AI Detection

Built-in smart detection can identify several common security and household events and send notifications through the Tapo app.

• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Line-Crossing Detection
• Tamper Detection
• Glass Detection
• Bark Detection
• Baby Crying Detection
• Meow Detection

Custom Activity Zones

Activity Zones allow selected areas of the camera image to be monitored more closely for supported detection types.

• Activity Zones: Yes
• Supported With: Motion / Person / Pet / Vehicle Detection

12m Infrared Night Vision

Six infrared LEDs provide clear black-and-white monitoring in darkness at distances of up to approximately 12 metres / 40 feet.

• Night Vision: Infrared
• Maximum IR Distance: Up to 12m / 40ft
• Infrared LEDs: 6 × 850nm

Starlight Sensor

The camera uses a 1/2.8-inch Progressive Scan CMOS Starlight sensor designed to capture clearer images under lower-light conditions.

• Image Sensor: 1/2.8-Inch Progressive Scan CMOS Starlight Sensor

Two-Way Audio

A built-in microphone and speaker allow real-time communication through the Tapo app.

• Built-In Microphone: Yes
• Built-In Speaker: Yes
• Two-Way Audio: Yes
• Noise Cancellation: Supported

Built-In Siren

The integrated speaker can also operate as an audible alarm when required.

• Built-In Siren: Yes
• Siren Volume: Approx. 69dB at 1m

Up to 512GB Local Storage

Record footage locally using a compatible microSD memory card without requiring a monthly cloud subscription.

• microSD Card Slot: Yes
• Maximum microSD Capacity: Up to 512GB
• microSD Card Included: No

Tapo Care Cloud Storage

Optional Tapo Care cloud services provide additional features such as cloud video storage, detection snapshots and backup options.

• Tapo Care: Supported
• Subscription: Required for Cloud Storage

Tapo HomeBase Support

The C245D can also work with supported Tapo HomeBase products for centralized management and recording.

• Tapo H500: Supported on Compatible Firmware / Configurations
• Tapo H200: Supported on Compatible Firmware / Configurations

HomeBase compatibility can vary by firmware and region.

2.4GHz Wi-Fi

The camera connects directly to your wireless network through 2.4GHz Wi-Fi.

• Wi-Fi: IEEE 802.11b/g/n
• Wi-Fi Band: 2.4GHz
• 5GHz Wi-Fi: No
• Ethernet Port: No

RTSP & ONVIF Support

The C245D supports industry-standard network video protocols for compatible NAS, NVR and third-party monitoring systems.

• RTSP: Yes
• ONVIF: Yes
• ONVIF Profile: Profile S

Smart Home Integration

The camera integrates with supported smart-home platforms for convenient viewing and voice control.

• Amazon Alexa: Supported
• Google Assistant / Google Home: Supported
• Samsung SmartThings: Supported

Secure Wireless Connection

• Encryption: 128-Bit AES with SSL/TLS
• Wi-Fi Security: WPA / WPA2-PSK / WPA3-PSK

Flexible Indoor Installation

The Tapo C245D can be positioned on a flat surface or installed on a wall or ceiling using the included mounting accessories.

• Desktop Placement: Supported
• Wall Mounting: Supported
• Ceiling Mounting: Supported
• Outdoor Weather Resistance: No

9V DC Power

The camera uses continuous wired power through the included DC power adapter.

• Power Input: 9V DC / 0.85A
• Power Connection: DC Jack
• Power Cable Length: Approx. 3m
• Battery Powered: No

Compact Dimensions

• Width: 82.2mm
• Depth: 82.2mm
• Height: 126.2mm
• Color: White

Key Features

• Brand: TP-Link Tapo
• Model: Tapo C245D
• Product Type: Dual Lens Pan/Tilt Indoor Security Camera
• Color: White
• Wide Camera Resolution: 2K 3MP / 2304 × 1296
• Telephoto Camera Resolution: 2K 3MP / 2304 × 1296
• Maximum Frame Rate: 15fps
• Wide Lens: 3.1mm F1.6
• Wide Field of View: 121.8° Diagonal
• Telephoto Lens: 6mm F1.6
• Telephoto Field of View: 65° Diagonal
• Digital Zoom: Up to 10.8×
• Pan Coverage: 360°
• Tilt Coverage: 100°
• Synchronized Smart Tracking: Yes
• One-Tap Smart Focus: Yes
• Patrol Mode: Yes
• Preset Patrol Points: Up to 8
• AI Person Detection: Yes
• AI Pet Detection: Yes
• AI Vehicle Detection: Yes
• Baby Cry Detection: Yes
• Bark / Meow Detection: Yes
• Line-Crossing Detection: Yes
• Night Vision: Up to 12m / 40ft
• Infrared LEDs: 6 × 850nm
• Two-Way Audio: Yes
• Built-In Siren: Approx. 69dB at 1m
• Local Storage: microSD up to 512GB
• Cloud Storage: Tapo Care Optional
• Wi-Fi: 2.4GHz 802.11b/g/n
• RTSP: Yes
• ONVIF: Profile S
• Alexa: Supported
• Google Assistant: Supported
• Samsung SmartThings: Supported
• Power: 9V DC / 0.85A
• Dimensions: 82.2 × 82.2 × 126.2mm
• Indoor Use: Yes

Compatibility

Compatible with:

• Tapo App
• Android 7.0 or Later
• iOS 12.0 or Later
• 2.4GHz Wi-Fi Networks
• Amazon Alexa
• Google Assistant / Google Home
• Samsung SmartThings
• Compatible ONVIF NVR Systems
• Compatible RTSP NAS / Monitoring Software
• Compatible Tapo HomeBase Systems

What's in the Box?

• 1 × TP-Link Tapo C245D Dual Lens Security Camera
• 1 × DC Power Adapter
• 1 × Mounting Template
• 1 × Mounting Bracket
• 4 × Screws & Anchors
• 1 × Quick Start Guide

Important Note

The Tapo C245D is designed primarily for indoor use and does not carry an outdoor weather-resistance rating.

The camera connects through 2.4GHz Wi-Fi only. It does not include a 5GHz Wi-Fi connection or Ethernet port.

A microSD card is not included. Local recording supports compatible cards up to 512GB.

The wide-angle lens is fixed for normal operation but can be manually adjusted vertically during installation. The telephoto lens is the motorized pan/tilt camera.

Optional Tapo Care cloud storage and supported Tapo HomeBase products are sold separately. Available features may vary according to region, firmware and subscription.

Ideal For

• Home Security
• Living Rooms
• Entrances
• Baby Monitoring
• Pet Monitoring
• Home Offices
• Indoor Shops & Small Businesses
• Monitoring Two Areas with One Camera
• NAS & NVR Security Setups
• Smart Home Monitoring
