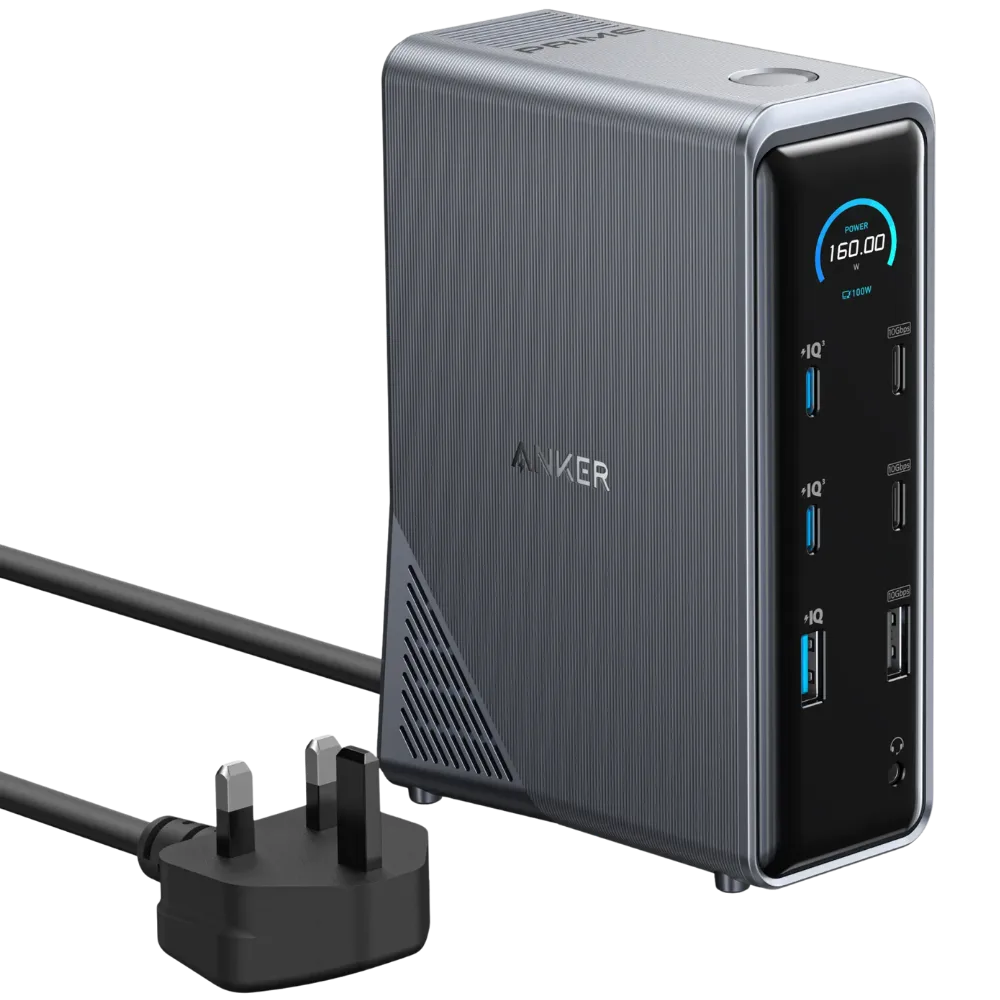

Anker Prime Charging Docking Station 14-in-1 Dual Display 160W - Black, UK 3-Pin (A83B6)

Anker Prime Charging Docking Station 14-in-1 Dual Display 160W - Black

The Anker Prime Charging Docking Station, model A83B6, is a premium all-in-one desktop hub designed to combine laptop charging, multi-device charging, high-speed data transfer, external displays, Ethernet and audio connectivity in one compact workstation.

It provides 14 total ports, up to 160W shared charging output, dual HDMI display support and data transfer speeds up to 10Gbps.

With a built-in smart display, integrated GaN power system and Anker Dock Manager support, it is ideal for professional Windows, MacBook, office and multi-monitor setups.

14-in-1 Desktop Connectivity

The Anker Prime Docking Station brings charging, data, display, network and audio ports together in a single vertical desktop unit.

• USB-C Upstream Port: 1
• USB-C Charging Ports: 2
• USB-C Data Ports: 2
• USB-A Charging Port: 1
• USB-A 10Gbps Data Port: 1
• USB-A 480Mbps Data Ports: 3
• HDMI 2.0 Ports: 2
• Gigabit Ethernet: 1
• 3.5mm Audio Combo Jack: 1
• Total Ports: 14

Up to 160W Total Charging

The dock provides up to 160W of total USB charging output across its charging-capable ports, allowing laptops, smartphones, tablets and accessories to be powered simultaneously.

• Total USB Charging Output: Up to 160W
• USB-C Maximum Output: Up to 100W on Supported Ports
• USB-A Charging Output: Up to 12W
• Multi-Device Charging: Supported

Available power is dynamically shared depending on the connected devices and selected power-management mode.

Up to 100W Laptop Charging

The full-function upstream USB-C connection can provide up to 100W Power Delivery to a compatible connected laptop while simultaneously handling data and display signals.

• Host Charging: Up to 100W
• Power Delivery: Supported
• Data Through Upstream USB-C: Up to 10Gbps
• DisplayPort Alt Mode: Required for Video Output

Dual USB-C Fast-Charging Ports

Two dedicated USB-C charging ports support high-power charging for compatible laptops, tablets, smartphones and other USB-C devices.

• USB-C Charging Ports: 2
• Single-Port Maximum: Up to 100W
• Shared Power Management: Yes

Actual charging output depends on the total 160W power budget, connected devices and selected power allocation.

Dedicated USB-A Charging Port

A dedicated USB-A charging port provides up to 12W for accessories and compatible USB-powered devices.

• USB-A Charging Ports: 1
• Maximum Output: 12W

Dual HDMI Display Output

Two built-in HDMI 2.0 ports allow compatible laptops to connect to one or two external displays.

• HDMI Ports: 2
• HDMI Version: HDMI 2.0
• Maximum Per-Port Capability: Up to 4K at 60Hz on Supported Configurations
• HDCP: HDCP 2.2
• HDR: Supported

Available resolution and refresh rate depend on the host laptop's DisplayPort version, graphics hardware, operating system and number of connected displays.

Windows Extended Dual Display

Compatible Windows systems support MST, allowing the two external displays to show different content in supported configurations.

• Windows MST: Supported
• Extended Desktop: Supported
• Mirror Mode: Supported

Important macOS Dual-Display Limitation

When two monitors are connected through this dock to a MacBook, macOS mirrors the same image across both external monitors because this dock relies on SST/MST behavior and macOS does not support MST in this configuration.

Windows systems can use MST for independent external displays, while macOS and iPadOS are limited to mirrored external displays through this dock.

Up to 10Gbps Data Transfer

High-speed USB ports provide data transfer rates up to 10Gbps for compatible SSDs, flash drives, card readers and other high-speed peripherals.

• Maximum Data Speed: 10Gbps
• USB-C 10Gbps Data Ports: 2
• USB-A 10Gbps Data Ports: 1
• USB-A 480Mbps Data Ports: 3

Actual transfer speeds depend on the connected device, cable, host computer and storage performance.

2 × USB-C 10Gbps Data Ports

Two USB-C data ports are provided for high-speed peripherals such as portable SSDs, flash storage and USB-C accessories.

• Ports: 2 × USB-C
• Maximum Data Rate: 10Gbps
• Video Output: Not Supported
• High-Power Charging: Not Supported

USB-A Data Connectivity

Four dedicated USB-A data ports provide support for both high-speed and everyday peripherals.

• 1 × USB-A: Up to 10Gbps
• 3 × USB-A: Up to 480Mbps

These are suitable for keyboards, mice, storage drives, printers, USB receivers and other compatible accessories.

Gigabit Ethernet

The integrated RJ45 port provides a stable wired network connection for office and professional environments.

• Ethernet Port: RJ45
• Maximum Network Speed: 1000Mbps / 1Gbps

3.5mm Audio Combo Jack

A built-in 3.5mm audio input/output combo jack allows compatible wired headsets, headphones and microphones to connect directly through the dock.

• Audio Port: 3.5mm Combo
• Headphone Output: Supported
• Microphone Input: Supported

Built-In Smart Display

The front smart display provides useful information about the dock and connected charging devices.

• Total Charging Power
• Individual Charging-Port Power Status
• USB Port Status
• HDMI Connection Status
• Temperature Warnings
• Firmware / System Status

The dock does not display true real-time file transfer speed because the operating system does not provide that data directly to the dock.

Smart & Custom Charging Modes

The Anker Dock Manager application allows supported charging behavior to be customized.

• Smart Mode: Automatically Allocates Power According to Connected Devices
• Power Priority: Prioritizes Selected Ports
• Power Saving: Reduces Power to Selected Ports
• Balanced Mode: Distributes Power More Evenly

Anker Dock Manager

The dock supports the Anker Dock Manager desktop application for compatible systems.

• Firmware Updates
• Charging Power Allocation
• Dock Management
• Compatibility Updates
• Troubleshooting Support

Integrated GaN Power System

Anker integrates the AC-to-DC power module directly into the docking station using GaN technology, eliminating the need for a large external desktop power brick.

This helps create a cleaner and more compact workstation.

Advanced Thermal Management

The dock includes airflow and thermal-management features designed to maintain stable operation during sustained high-power charging and data use.

• Heat Dissipation System: Yes
• Temperature Monitoring: Yes
• Automatic Power Reduction During Excess Heat: Supported

If abnormal temperature conditions are detected, the dock can temporarily reduce charging output until normal operating temperatures return.

Vertical Space-Saving Design

The dock is designed to stand vertically, reducing the amount of desk space required while keeping ports easily accessible.

• Dimensions: 140 × 97 × 47mm
• Weight: Approx. 888g
• Color: Black
• Orientation: Vertical Desktop

UK 3-Pin Power Connection

This QUTECH listing is for the UK Type-G 3-pin power-cord version, suitable for standard Maldives Type-G wall sockets.

Regional packages of model A83B6 can use different AC power cords, so the supplied 3-pin version should be confirmed from the product packaging before dispatch.

Key Features

• Brand: Anker
• Series: Prime
• Model: A83B6
• Product Type: Charging Docking Station
• Color: Black
• Total Ports: 14
• Total USB Charging Output: Up to 160W
• Host USB-C Charging: Up to 100W
• USB-C Charging Ports: 2 × Up to 100W
• USB-A Charging Port: 1 × Up to 12W
• USB-C Upstream: 10Gbps / Up to 100W
• USB-C Data Ports: 2 × 10Gbps
• USB-A High-Speed Data: 1 × 10Gbps
• USB-A Standard Data: 3 × 480Mbps
• HDMI: 2 × HDMI 2.0
• Maximum HDMI Capability: Up to 4K@60Hz Depending on Host Configuration
• Ethernet: 1Gbps RJ45
• Audio: 3.5mm Input / Output Combo
• Maximum Data Transfer: 10Gbps
• Smart Display: Yes
• Dock Manager: Supported
• Custom Power Allocation: Supported
• GaN Power System: Integrated
• Temperature Protection: Yes
• Power Plug: UK Type-G 3-Pin on This QUTECH Stock
• Dimensions: 140 × 97 × 47mm
• Weight: Approx. 888g

Compatibility

Compatible with supported USB-C host devices running:

• Windows 10
• Windows 11
• macOS 12 or Later
• ChromeOS
• Dell USB-C Laptops
• Lenovo USB-C Laptops
• HP USB-C Laptops
• Compatible MacBook Air Models
• Compatible MacBook Pro Models
• Other USB-C Laptops Supporting DisplayPort Alt Mode & Power Delivery

For charging and video through the host connection, the laptop's USB-C port must support the required USB Power Delivery and DisplayPort Alt Mode features.

What's in the Box?

• 1 × Anker Prime Charging Docking Station A83B6
• 1 × USB-C Upstream Cable
• 1 × UK Type-G 3-Pin AC Power Cord
• 1 × User Guide / Safety Documentation

Important Note

The maximum 160W output is shared across the dock's USB charging ports. Individual charging output varies according to the number and requirements of connected devices.

The two HDMI ports support high-resolution displays, but maximum resolution and refresh rate depend on the host laptop's DisplayPort capability and operating system. Anker's detailed UK compatibility guidance states that simultaneous dual-display output can be bandwidth-limited depending on the host DP version.

On macOS and iPadOS, two external monitors connected through this docking station display the same mirrored content. Independent dual external displays through MST are supported on compatible Windows systems.

The two downstream USB-C data ports do not support video output. Ports marked for dedicated charging do not support data transfer.

This listing treats the supplied QUTECH stock as the UK Type-G 3-pin version. Model A83B6 is also sold internationally with different regional power cords.

Ideal For

• Professional Laptop Workstations
• Dual-Monitor Desk Setups
• Windows Productivity
• MacBook Workstations
• Home Offices
• Corporate Offices
• Content Creation
• Programming & Development
• High-Speed External SSDs
• Gigabit Wired Networking
• Multi-Device Charging
• Clean Desktop Cable Management
