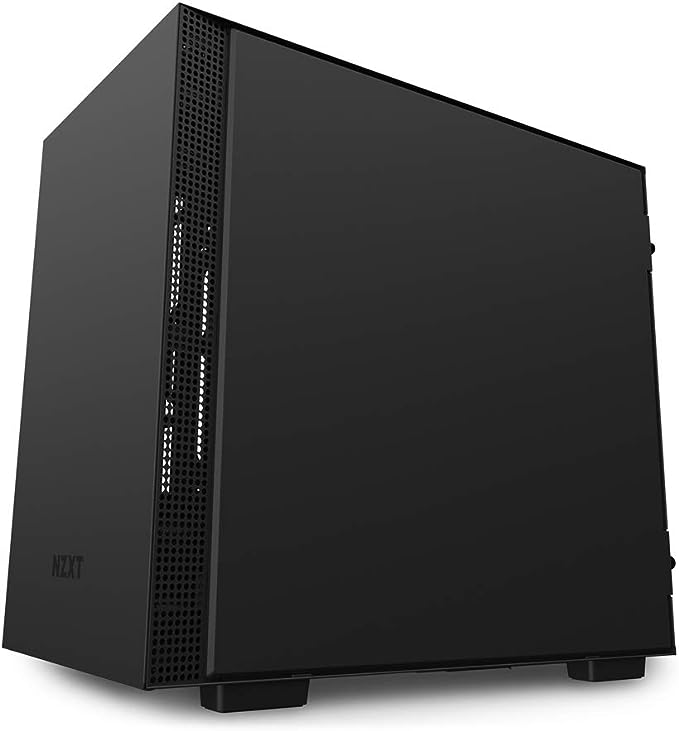

NZXT H210i Mini-ITX PC Case - Matte Black/Black (CA-H210i-B1)

NZXT H210i Mini-ITX PC Case - Matte Black/Black

The NZXT H210i, model CA-H210i-B1, is a compact Mini-ITX PC case designed for clean gaming builds, productivity systems, and space-saving desktops.

It combines NZXT's minimalist H-series styling with a clear tempered-glass side panel, integrated RGB lighting, Smart Device V2 controller, USB-C connectivity, and flexible air or liquid cooling support. NZXT currently lists the Black H210i model as CA-H210i-B1.

Mini-ITX Motherboard Support

The H210i is designed for:

Mini-ITX motherboards

Its compact layout makes it suitable for small-form-factor systems while still providing room for full-size desktop components within the case's clearance limits.

Tempered-Glass Side Panel

The chassis uses a combination of:

SGCC steel
Clear tempered glass

The tempered-glass side panel gives a clear view of internal components and the case's integrated RGB lighting.

Smart Device V2 Included

Unlike the standard H210, the H210i includes NZXT's Smart Device V2.

NZXT lists:

3 fan channels
Up to 10W per fan channel
4-pin PWM support
3-pin DC fan compatibility
2 RGB channels
NZXT 4-pin RGB connection
SATA power
Internal USB 2.0 data connection

This allows supported fan and RGB control through the NZXT ecosystem.

Integrated RGB Lighting

RGB lighting is included specifically with the H210i version.

This adds customizable interior illumination that works with the integrated Smart Device V2.

Two Included Aer F 120mm Fans

The H210i includes:

1 × Aer F 120mm top fan
1 × Aer F 120mm rear fan

NZXT lists the case-version Aer F 120mm fans at:

Speed: 1200 ±200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Connector: 3-pin DC
Flexible Fan Support

Fan mounting support includes:

Front: up to 2 × 120mm or 2 × 140mm
Top: 1 × 120mm
Rear: 1 × 120mm

NZXT also lists dust filters on all air-intake areas.

Up to 240mm Front Radiator Support

Liquid-cooling support includes:

Front: Up to 240mm
Rear: Up to 120mm

NZXT lists up to 85mm total front fan/radiator clearance in its current support specifications.

Up to 325mm GPU Length

NZXT's current support page lists maximum graphics-card length of:

Up to 325mm without front fans or radiator

Maximum GPU thickness is listed at:

44mm

Actual graphics-card clearance decreases when front-mounted fans or liquid-cooling hardware are installed.

165mm CPU Cooler Clearance

The case supports CPU air coolers up to:

165mm high

This gives builders room for many tower-style CPU air coolers despite the compact Mini-ITX chassis.

Flexible Storage

Storage support includes:

3 + 1 × 2.5-inch drives
1 × 3.5-inch drive

This allows users to configure several SSDs or combine SSD and hard-drive storage.

USB-C Front Connectivity

Front I/O includes:

1 × USB 3.2 Type-A
1 × USB 3.2 Gen 2x2 Type-C
1 × 3.5mm headset jack

The USB-C port provides convenient connectivity for compatible modern peripherals and storage devices.

Compact Dimensions

NZXT lists chassis dimensions of:

349 × 210 × 372mm
(H × W × D, including feet)

Weight is approximately:

5.9kg

Key Features
Brand: NZXT
Series: H Series
Model: H210i
Model Number: CA-H210i-B1
Product Type: Mini-ITX PC Case
Color: Matte Black/Black
Motherboard support: Mini-ITX
Material: SGCC Steel + Clear Tempered Glass
Dimensions: 349 × 210 × 372mm
Weight: 5.9kg
Expansion slots: 2
GPU length: Up to 325mm without front fans/radiator
Maximum GPU thickness: 44mm
CPU cooler clearance: 165mm
Front fan support: 2 × 120mm / 2 × 140mm
Top fan support: 1 × 120mm
Rear fan support: 1 × 120mm
Included fans: 2 × Aer F 120mm
Front radiator support: Up to 240mm
Rear radiator support: Up to 120mm
2.5" storage: 3 + 1
3.5" storage: 1
Smart Device V2 included
3 fan-control channels
2 NZXT RGB channels
Integrated RGB lighting
USB 3.2 Type-A
USB 3.2 Gen 2x2 Type-C
3.5mm headset jack
Dust filters on air intakes
Compatibility

Suitable for compact systems using:

Motherboards

Mini-ITX

Graphics Cards

Up to 325mm without front-mounted cooling
Maximum thickness: 44mm

CPU Air Coolers

Up to 165mm

Liquid Cooling

Up to 240mm front radiator
Up to 120mm rear radiator

The H210i should also not be confused with the standard H210. The H210i specifically includes Smart Device V2 and RGB lighting.

Ideal For

Mini-ITX gaming PCs, compact productivity systems, RGB builds, clean minimalist desktops, small workstation PCs, and users who want a compact NZXT chassis with integrated lighting and fan control.
