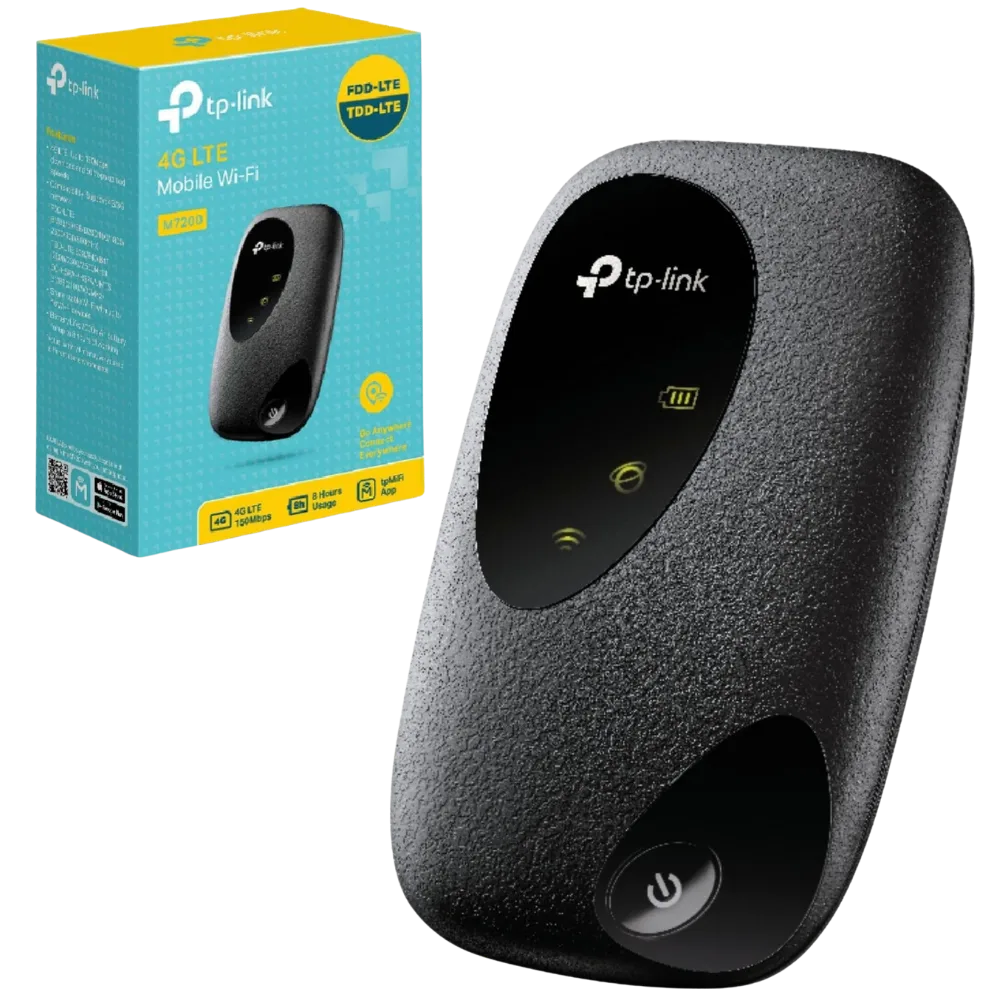

TP-Link M7200 150Mbps 4G LTE Mobile Wi-Fi - Black

TP-Link M7200 150Mbps 4G LTE Mobile Wi-Fi

The TP-Link M7200 is a compact portable 4G LTE hotspot designed to share mobile internet with smartphones, tablets, laptops and other Wi-Fi devices wherever compatible cellular coverage is available.

It supports up to 150Mbps 4G LTE download and 50Mbps upload speeds, while creating a 2.4GHz Wi-Fi network for up to 10 devices simultaneously.

With a rechargeable 2000mAh battery, up to 8 hours of 4G sharing and tpMiFi app management, the M7200 is ideal for travel, work, backup internet and everyday mobile connectivity.

4G LTE Mobile Internet

The M7200 connects directly to compatible 4G LTE mobile networks using a SIM card and converts the cellular connection into a portable Wi-Fi hotspot.

• Mobile Network: 4G LTE / 3G
• Maximum 4G Download Speed: Up to 150Mbps
• Maximum 4G Upload Speed: Up to 50Mbps
• LTE Category: Cat 4 Class Performance

Actual mobile speeds depend on your operator, SIM plan, network coverage, congestion and signal conditions.

Supports FDD-LTE & TDD-LTE

The M7200 supports a selection of commonly used FDD-LTE and TDD-LTE frequency bands for broad regional compatibility.

• FDD-LTE Band 1: 2100MHz
• FDD-LTE Band 3: 1800MHz
• FDD-LTE Band 7: 2600MHz
• FDD-LTE Band 8: 900MHz
• FDD-LTE Band 20: 800MHz
• TDD-LTE Band 38: 2600MHz
• TDD-LTE Band 40: 2300MHz
• TDD-LTE Band 41: 2500MHz

3G Network Support

Where 4G LTE is unavailable, the M7200 can fall back to compatible 3G networks.

• 3G Standards: DC-HSPA+ / HSPA+ / HSPA / UMTS
• 3G Band 1: 2100MHz
• 3G Band 8: 900MHz

Share Internet with Up to 10 Devices

The portable hotspot can share its mobile-data connection with up to 10 wireless devices simultaneously.

• Maximum Connected Wi-Fi Devices: 10
• Smartphones
• Tablets
• Laptops
• Gaming Devices
• Other Compatible Wi-Fi Equipment

300Mbps 2.4GHz Wi-Fi

The M7200 creates a 2.4GHz Wi-Fi network using IEEE 802.11b/g/n standards.

• Wi-Fi Standards: IEEE 802.11b/g/n
• Wi-Fi Band: 2.4GHz
• Maximum Wi-Fi Link Speed: Up to 300Mbps
• 5GHz Wi-Fi: No

The 300Mbps figure refers to the theoretical local Wi-Fi link rate. Internet speed remains limited by the connected mobile network and service plan.

Simple Plug-and-Play Setup

Getting online is straightforward: install a compatible SIM card, insert the battery and power on the M7200.

• Insert Compatible SIM Card
• Install Battery
• Power On the M7200
• Connect to the Default Wi-Fi Network
• Enter the Wireless Password
• Start Using the Internet

TP-Link states that the hotspot can normally be ready for use within approximately half a minute after powering on under suitable network conditions.

SIM Card Support

The M7200 uses a SIM card slot underneath the removable rear cover and battery area.

• SIM Connection: Physical SIM
• SIM Card Slot: Yes
• Micro / Nano SIM: Requires Compatible SIM Adapter on Hardware Versions Using the Standard-Size Slot

SIM-card adapter inclusion varies between hardware revisions and regional packages, so check the physical package contents if an adapter is required.

2000mAh Rechargeable Battery

The supplied rechargeable battery provides portable operation without needing continuous mains power.

• Battery Capacity: 2000mAh
• 4G Sharing Time: Up to 8 Hours
• Standby Time: Up to Approx. 480 Hours
• Rechargeable: Yes

Actual battery life varies depending on signal strength, network activity, connected devices, temperature and other usage conditions.

Power Saving Mode

To reduce unnecessary battery drain, the M7200 can automatically disable Wi-Fi when no wireless device remains connected for a period of time.

• Power Saving: Supported
• Default Wi-Fi Sleep: After Approx. 10 Minutes Without Connected Devices

Press the power button to wake Wi-Fi again when required.

tpMiFi App Control

The TP-Link tpMiFi app allows convenient management from compatible iOS and Android smartphones.

• View Connected Devices
• Control Wi-Fi Access
• Set Mobile Data Limits
• Monitor Data Usage
• Manage Supported SMS Messages
• Configure Mobile Wi-Fi Settings

LED Status Indicators

Three LEDs provide quick information about the hotspot's operating condition.

• Wi-Fi LED: Wireless Network Status
• Internet LED: Mobile Internet Connection Status
• Battery LED: Power / Charging / Low Battery Status

The LEDs automatically switch off after a short idle period to help preserve battery power and can be illuminated again by pressing the power button.

Wireless Security

Built-in wireless security helps protect the portable hotspot from unauthorized users.

• Security: WPA-PSK / WPA2-PSK
• Wireless MAC Filtering: Supported
• SSID Broadcast Control: Supported
• DHCP Server: Built-In

Internal Antennas

The M7200 uses integrated cellular and wireless antennas to maintain its compact portable design.

• Antenna Design: Internal
• External Antenna Connectors: No

Micro USB Charging

The M7200 uses a Micro USB connection for charging.

• Charging Port: Micro USB
• Power Input: 5V / 1A
• Micro USB Cable: Included

Compact Travel-Friendly Design

Its compact body makes the M7200 easy to carry in a backpack, laptop bag, handbag or pocket.

• Width: 94mm
• Depth: 56.7mm
• Height: 19.8mm
• Color: Black

No Fixed Broadband Required

Because internet access comes from a compatible SIM card and mobile network, the M7200 does not require a fixed fibre, cable or DSL connection.

This makes it useful as temporary internet, travel Wi-Fi or a backup connection during fixed-line outages.

Key Features

• Brand: TP-Link
• Model: M7200
• Product Type: 4G LTE Mobile Wi-Fi / Portable Hotspot
• Color: Black
• Maximum 4G Download: Up to 150Mbps
• Maximum 4G Upload: Up to 50Mbps
• 4G: FDD-LTE / TDD-LTE
• 3G: DC-HSPA+ / HSPA+ / HSPA / UMTS
• Wi-Fi Standards: IEEE 802.11b/g/n
• Wi-Fi Band: 2.4GHz
• Maximum Wi-Fi Speed: Up to 300Mbps
• Maximum Wi-Fi Devices: 10
• Battery: 2000mAh Rechargeable
• Battery Life: Up to 8 Hours
• Standby: Up to Approx. 480 Hours
• Charging Port: Micro USB
• Power Input: 5V / 1A
• tpMiFi App: Supported
• Wireless Security: WPA-PSK / WPA2-PSK
• MAC Filtering: Supported
• DHCP Server: Yes
• Antennas: Internal
• LED Indicators: Wi-Fi / Internet / Battery
• Dimensions: 94 × 56.7 × 19.8mm

Compatibility

Designed to provide Wi-Fi internet access for compatible:

• Android Smartphones & Tablets
• iPhone & iPad
• Windows Laptops & PCs
• Mac Computers
• Chromebooks
• Portable Gaming Devices
• Wi-Fi Cameras & Smart Devices
• Other 2.4GHz Wi-Fi Devices

Mobile-network compatibility depends on the frequency bands used by your mobile operator and the exact regional hardware version of the M7200.

What's in the Box?

• 1 × TP-Link M7200 4G LTE Mobile Wi-Fi - Black
• 1 × 2000mAh Rechargeable Battery
• 1 × Micro USB Cable
• 1 × Quick Installation Guide

Important Note

The advertised 150Mbps speed refers to the maximum theoretical 4G LTE download rate. Upload speed is rated up to 50Mbps, while the local 2.4GHz Wi-Fi link is rated up to 300Mbps.

Actual mobile internet performance depends on your SIM card, mobile operator, data plan, LTE bands, signal strength, network congestion and location.

The M7200 supports 2.4GHz Wi-Fi only and does not provide a 5GHz Wi-Fi network.

The M7200 is available in multiple hardware revisions. Supported mobile bands and some package details can vary by region, so QUTECH should use the hardware version printed on the physical unit or retail box when publishing revision-specific information.

A SIM card and mobile-data plan are required and are not included.

Ideal For

• Travel & Holidays
• Business Trips
• Portable Internet
• Students
• Remote Work
• Temporary Wi-Fi
• Backup Internet
• Sharing One SIM Across Multiple Devices
• Laptops & Tablets on the Go
• Portable Smart Device Connectivity
