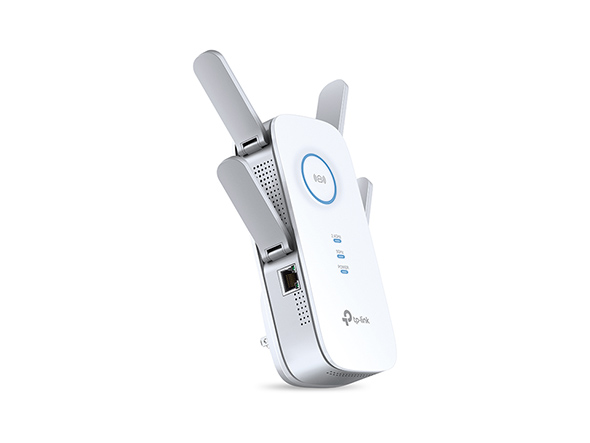

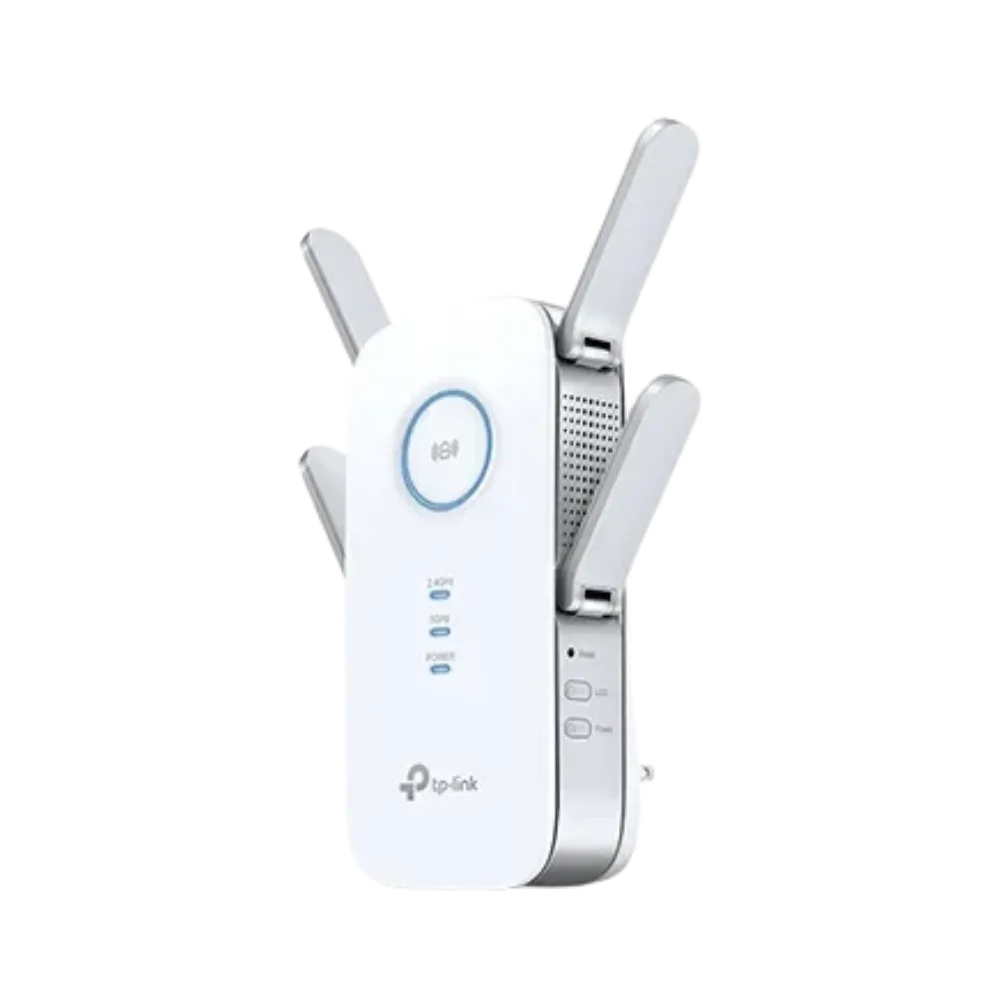

TP-Link RE650 AC2600 Dual-Band MU-MIMO Wi-Fi Range Extender

TP-Link RE650 AC2600 Dual-Band MU-MIMO Wi-Fi Range Extender

The TP-Link RE650 is a high-performance dual-band Wi-Fi range extender designed to improve wireless coverage in areas where your existing router signal is weak.

It delivers simultaneous wireless speeds of up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz, providing AC2600-class wireless performance.

With 4×4 MU-MIMO, four external antennas, beamforming, Gigabit Ethernet and Access Point Mode, the RE650 is ideal for larger homes, offices, streaming setups and gaming networks.

AC2600 Dual-Band Wi-Fi

The RE650 operates simultaneously on 2.4GHz and 5GHz bands to provide flexible connectivity for everyday devices and high-bandwidth applications.

• 2.4GHz Speed: Up to 800Mbps
• 5GHz Speed: Up to 1733Mbps
• Wi-Fi Class: AC2600
• Dual-Band: Yes
• Wi-Fi Generation: Wi-Fi 5 / 802.11ac

8-Stream Wireless Performance

The RE650 uses an 8-stream dual-band design to provide high wireless capacity across both frequency bands.

• Wireless Streams: 8-Stream Dual Band
• 2.4GHz: Up to 800Mbps
• 5GHz: Up to 1733Mbps

4×4 MU-MIMO Technology

MU-MIMO allows the extender to communicate with multiple compatible devices simultaneously instead of serving devices strictly one at a time.

• MU-MIMO: 4×4
• Simultaneous Multi-Device Communication: Yes
• MU-MIMO Compatible Clients Required: Yes

Four External Antennas

Four external dual-band antennas help extend Wi-Fi coverage and maintain stable connections throughout larger areas.

• Antennas: 4 × External
• Dual-Band Antennas: Yes
• Designed for Extended Coverage: Yes

Beamforming Technology

Beamforming helps direct wireless signals toward compatible connected devices instead of broadcasting the signal equally in every direction.

• Beamforming: Supported
• Targeted Wi-Fi Signal: Yes

880MHz Dual-Core Processor

An integrated dual-core processor helps the extender manage multiple wireless connections and network tasks efficiently.

• Processor: 880MHz Dual-Core CPU

Expand Existing Wi-Fi Coverage

Install the RE650 between your main router and areas with poor reception to extend the existing wireless network.

• Range Extender Mode: Yes
• Works with Standard Wi-Fi Routers: Yes
• Works with Wireless Access Points: Yes

Intelligent Signal Indicator

The built-in signal light helps identify a suitable location for the extender.

• Blue: Good Connection to Router
• Red: Extender is Too Far from Router
• Placement Assistance: Yes

Gigabit Ethernet Port

The built-in Gigabit Ethernet port can connect a wired device such as a desktop computer, game console or smart TV to the extended network.

• Ethernet: 1 × Gigabit Ethernet Port
• Maximum Wired Link Rate: Up to 1000Mbps
• Wireless-to-Wired Adapter Function: Yes

Access Point Mode

The RE650 can also convert an existing wired Ethernet connection into a powerful dual-band wireless access point.

• Access Point Mode: Yes
• Range Extender Mode: Yes
• 4×4 MU-MIMO in AP Mode: Supported

TP-Link OneMesh

Compatible RE650 V2 hardware can work with supported TP-Link OneMesh routers to create a unified whole-home Wi-Fi network.

• TP-Link OneMesh: Supported on Compatible V2 Hardware / Firmware
• Single Wi-Fi Name: Supported
• Seamless Roaming: Supported
• Unified Management: Supported

OneMesh requires a compatible TP-Link OneMesh router. Support can differ between RE650 hardware versions.

Stable Dual-Band Connection

The RE650 can maintain dual-band wireless service for connected clients even when the host router connection is available through only one supported wireless band.

• Concurrent Dual-Band Client Wi-Fi: Supported
• 2.4GHz + 5GHz: Yes

TP-Link Tether App

Use the TP-Link Tether app to conveniently view and manage the extender from a compatible smartphone or tablet.

• TP-Link Tether App: Supported
• Android: Supported
• iOS: Supported
• Network Status: Viewable
• Settings Management: Supported

Web-Based Management

The RE650 can also be configured through its browser-based management interface.

• Web Management: Supported
• HTTP: Supported
• HTTPS: Supported

Quick WPS Setup

Connect to a compatible router using the WPS button for a quick wireless setup.

• WPS: Yes
• WPS Button: Yes
• Reset Button: Yes
• LED Button: Yes
• Power Button: Yes

Wi-Fi Coverage Control

Supported firmware provides wireless coverage controls for adapting the extender output to different room and home sizes.

• Wi-Fi Coverage Adjustment: Supported

Access Control

Access Control allows supported devices to be allowed or restricted from connecting through the extender.

• Access Control: Yes
• Connected Device Management: Supported

LED Control

LED controls let you manage the extender's status lights when they are not needed.

• LED Control: Supported

Power Schedule

Supported firmware allows the extender to be scheduled to operate at selected times.

• Power Schedule: Supported

Wireless Standards

• 5GHz: IEEE 802.11a/n/ac
• 2.4GHz: IEEE 802.11b/g/n
• Frequency Bands: 2.4GHz + 5GHz
• Wi-Fi 6 / 802.11ax: No

Wireless Security

• 64/128-Bit WEP
• WPA-PSK
• WPA2-PSK

The published RE650 V2 specification does not list WPA3 support.

Universal Router Compatibility

The RE650 can work as a conventional range extender with virtually any standard Wi-Fi router or wireless access point.

• TP-Link Routers: Compatible
• Other Brand Routers: Compatible
• Wireless Access Points: Compatible

100-240V Universal Input

• Input: 100-240V AC
• Frequency: 50/60Hz
• Maximum Power Consumption: 12W

Regional Plug Versions

TP-Link manufactures the RE650 in several regional plug configurations.

• UK Plug
• EU Plug
• US Plug

The exact plug type should be confirmed from QUTECH's physical retail stock.

Dimensions

• Width: 163mm
• Depth: 86mm
• Height: 40mm

Operating Environment

• Operating Temperature: 0°C - 40°C
• Storage Temperature: -40°C - 70°C
• Operating Humidity: 10% - 90% Non-Condensing
• Storage Humidity: 5% - 90% Non-Condensing

Key Features

• Brand: TP-Link
• Model: RE650
• Product Type: Dual-Band Wi-Fi Range Extender
• Wi-Fi Class: AC2600
• Wi-Fi Generation: Wi-Fi 5
• 2.4GHz Speed: Up to 800Mbps
• 5GHz Speed: Up to 1733Mbps
• Wireless Streams: 8-Stream
• MU-MIMO: 4×4
• Beamforming: Yes
• Processor: 880MHz Dual-Core
• Antennas: 4 × External
• Gigabit Ethernet: 1 Port
• Range Extender Mode: Yes
• Access Point Mode: Yes
• OneMesh: Supported on Compatible V2 Hardware / Firmware
• Intelligent Signal Indicator: Yes
• WPS: Yes
• TP-Link Tether: Supported
• Access Control: Yes
• LED Control: Yes
• Power Schedule: Supported
• Input: 100-240V AC, 50/60Hz
• Maximum Power Consumption: 12W
• Dimensions: 163 × 86 × 40mm

Compatibility

Compatible with:

• 2.4GHz Wi-Fi Routers
• 5GHz Wi-Fi Routers
• Dual-Band Wi-Fi Routers
• Wi-Fi 5 / 802.11ac Networks
• Wi-Fi 4 / 802.11n Networks
• Compatible TP-Link OneMesh Routers
• Smart TVs
• Gaming Consoles
• Desktop Computers
• Network Media Players
• Other Gigabit Ethernet Devices

What's in the Box?

• 1 × TP-Link RE650 AC2600 Wi-Fi Range Extender
• 1 × Quick Installation Guide

Important Note

The advertised AC2600 rating combines theoretical wireless link speeds of up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz. A single connected device will not receive a 2600Mbps internet connection.

Actual Wi-Fi speed, coverage and throughput depend on your router, internet connection, connected devices, interference, walls, installation position and other environmental conditions.

MU-MIMO benefits require compatible MU-MIMO client devices.

TP-Link has released the RE650 in multiple hardware revisions. OneMesh availability and firmware features can differ between revisions, so check the hardware version printed on the physical QUTECH stock if mesh compatibility is important.

The RE650 is a Wi-Fi 5 / 802.11ac extender. It does not provide Wi-Fi 6 / 802.11ax connectivity.

Plug type varies by region. Confirm whether QUTECH stock uses the UK, EU or another plug before publishing a specific plug type.

Ideal For

• Extending Home Wi-Fi Coverage
• Reducing Wi-Fi Dead Zones
• Large Homes
• Apartments
• Home Offices
• 4K Streaming
• Online Gaming
• Smart TVs
• Gaming Consoles
• Multi-Device Wi-Fi Networks
• Gigabit Wired Devices
• Access Point Installations
• Compatible TP-Link OneMesh Networks
