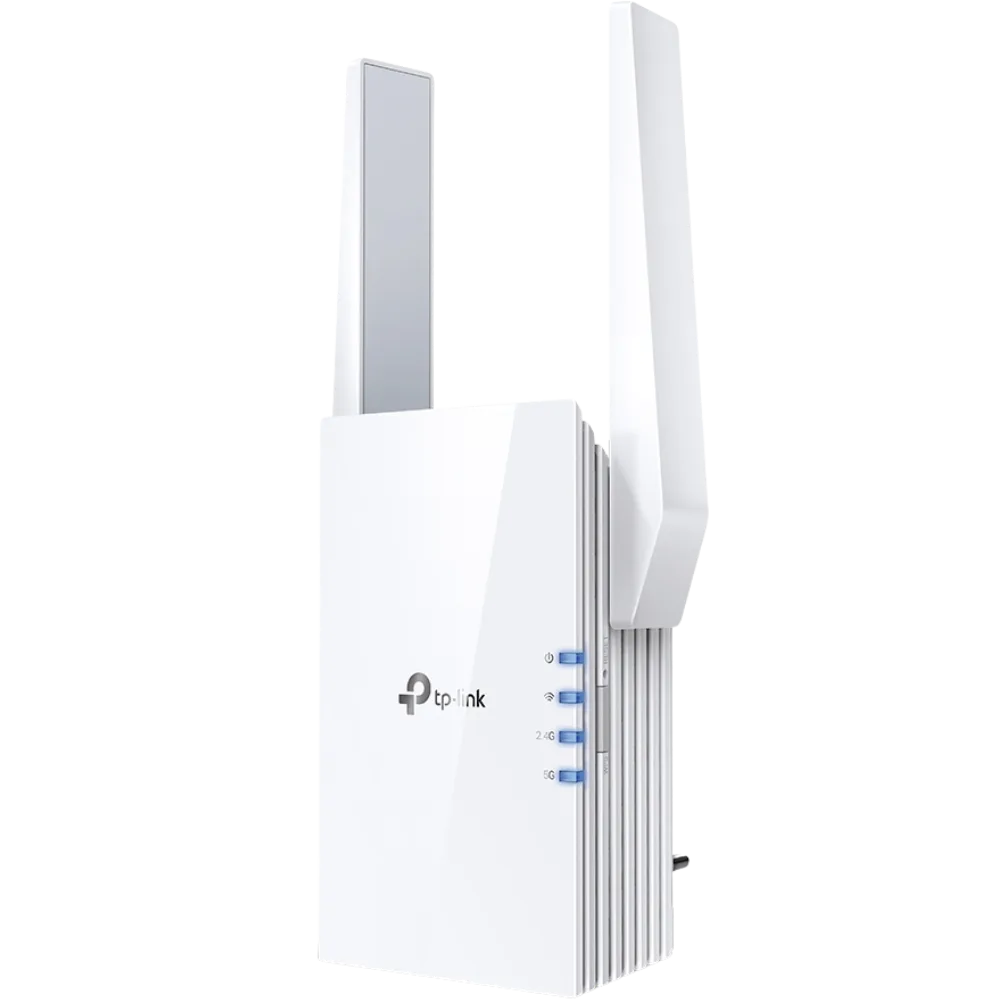

TP-Link RE605X AX1800 Dual-Band Wi-Fi 6 Range Extender

TP-Link RE605X AX1800 Dual-Band Wi-Fi 6 Range Extender

The TP-Link RE605X is a Wi-Fi 6 range extender designed to eliminate weak-signal areas and expand fast wireless coverage throughout your home or office.

It delivers dual-band wireless speeds of up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz, providing an AX1800-class connection for streaming, gaming and everyday internet use.

With EasyMesh compatibility on current supported hardware, two external antennas, Gigabit Ethernet, Access Point Mode and TP-Link Tether app control, the RE605X is a flexible upgrade for modern wireless networks.

AX1800 Dual-Band Wi-Fi 6

The RE605X uses Wi-Fi 6 technology to provide faster wireless performance, greater network capacity and improved efficiency for modern connected devices.

• Wi-Fi Class: AX1800
• 5GHz Speed: Up to 1201Mbps
• 2.4GHz Speed: Up to 574Mbps
• Combined Wireless Class: Approx. 1.8Gbps
• Wi-Fi Generation: Wi-Fi 6 / IEEE 802.11ax

Wi-Fi 6 Performance

Wi-Fi 6 is designed to improve network efficiency when multiple compatible devices are connected at the same time.

• Higher Wireless Capacity: Yes
• Reduced Latency: Yes
• Improved Multi-Device Efficiency: Yes
• Backward Compatibility: Wi-Fi 5 / Wi-Fi 4 Devices

EasyMesh Whole-Home Wi-Fi

Current supported RE605X hardware can connect with a compatible EasyMesh router to form a unified whole-home mesh Wi-Fi network.

• EasyMesh: Supported on Compatible Hardware / Firmware
• Unified Mesh Network: Yes
• Seamless Whole-Home Coverage: Supported
• Compatible EasyMesh Router Required: Yes

Smart Roaming

When used in a compatible mesh configuration, Smart Roaming helps wireless devices remain connected as you move between different areas of your home.

• Smart Roaming: Supported with Compatible Mesh Setup
• Single Network Experience: Supported

Adaptive Path Selection

Adaptive Path Selection automatically chooses an efficient connection path between the extender and router to help maintain stronger network performance.

• Adaptive Path Selection: Yes
• Automatic Connection Optimization: Yes

Two Adjustable External Antennas

Two external antennas help provide stable wireless coverage and can be adjusted to suit the extender's installation position.

• Antennas: 2 × External
• Adjustable: Yes
• Beamforming: Supported

Gigabit Ethernet Port

The built-in Gigabit Ethernet port lets you connect a wired device such as a gaming console, desktop computer, smart TV or network media device.

• Ethernet Port: 1 × Gigabit Ethernet
• Maximum Wired Link Speed: Up to 1000Mbps
• Wireless Adapter Function: Yes

Access Point Mode

Connect the RE605X to an existing wired Ethernet network to create a dual-band Wi-Fi 6 access point.

• Range Extender Mode: Yes
• Access Point Mode: Yes
• Wired-to-Wireless Conversion: Supported

Works with Existing Wi-Fi Routers

The RE605X can operate as a conventional range extender with virtually any standard Wi-Fi router or wireless access point.

• TP-Link Routers: Compatible
• Other Brand Routers: Compatible
• Wi-Fi 6 Routers: Compatible
• Wi-Fi 5 Routers: Compatible

EasyMesh functionality requires compatible mesh equipment, but normal Wi-Fi range extension does not require an EasyMesh router.

Smart Signal Indicator

The built-in signal indicator helps identify a suitable installation location between the main router and the area requiring better coverage.

• Signal Strength Indicator: Yes
• Placement Assistance: Yes

Quick WPS Setup

The dedicated WPS button allows quick connection to compatible routers without manually entering all network details.

• WPS Button: Yes
• Quick Wireless Setup: Supported
• Reset Button: Yes

TP-Link Tether App

Use the TP-Link Tether app on a compatible smartphone or tablet for convenient setup and network management.

• TP-Link Tether: Supported
• Android: Supported
• iOS: Supported
• Setup & Management: Supported

Web Management

The extender can also be configured through TP-Link's browser-based management interface.

• Web-Based Setup: Supported
• Local Management: Supported

WPA3 Security

Current RE605X specifications include modern WPA3 wireless encryption in addition to WPA and WPA2 support.

• WPA: Supported
• WPA2: Supported
• WPA3: Supported on Current Hardware / Firmware

Dual-Band Wireless Standards

• 5GHz: IEEE 802.11a/n/ac/ax
• 2.4GHz: IEEE 802.11b/g/n/ax
• Frequency Bands: 2.4GHz + 5GHz

Access Control

Manage which wireless devices are permitted to connect through the extender.

• Access Control: Supported
• Connected Device Management: Supported

Wi-Fi Coverage Control

Supported settings allow the extender's wireless coverage level to be adjusted according to the size of the installation area.

• Wi-Fi Coverage Adjustment: Supported

LED Control

LED controls allow the status lights to be managed when the extender is installed in bedrooms or other locations where bright indicators may be distracting.

• LED Control: Supported

Power Schedule

Supported firmware allows operating schedules to be configured for additional control over when the extender is active.

• Power Schedule: Supported

100-240V Universal Power Input

The RE605X supports a wide AC input range for use with suitable regional plug versions.

• Input Power: 100-240V AC
• Frequency: 50/60Hz

Current V4 Hardware Specifications

TP-Link's current V4 datasheet lists the following physical specifications. Earlier hardware revisions can differ slightly.

• Dimensions: Approx. 74 × 46 × 124.7mm
• Maximum Power Consumption: Approx. 11.5W
• Antennas: 2 × External
• Ethernet: 1 × Gigabit Port

Key Features

• Brand: TP-Link
• Model: RE605X
• Product Type: Dual-Band Wi-Fi 6 Range Extender
• Wi-Fi Class: AX1800
• Wi-Fi Generation: Wi-Fi 6
• 5GHz Speed: Up to 1201Mbps
• 2.4GHz Speed: Up to 574Mbps
• EasyMesh: Supported on Current Compatible Hardware / Firmware
• Smart Roaming: Supported
• Adaptive Path Selection: Yes
• Beamforming: Supported
• Antennas: 2 × Adjustable External Antennas
• Ethernet: 1 × Gigabit Ethernet Port
• Access Point Mode: Yes
• Range Extender Mode: Yes
• WPS: Yes
• TP-Link Tether: Supported
• WPA3: Supported on Current Hardware / Firmware
• Access Control: Yes
• LED Control: Yes
• Power Schedule: Yes
• Input: 100-240V AC, 50/60Hz

Compatibility

Compatible with:

• Wi-Fi 6 Routers
• Wi-Fi 5 Routers
• 2.4GHz Wi-Fi Networks
• 5GHz Wi-Fi Networks
• Compatible EasyMesh Routers
• TP-Link Tether App
• Smart TVs
• Gaming Consoles
• Desktop Computers
• Network Media Players
• Other Gigabit Ethernet Devices

What's in the Box?

• 1 × TP-Link RE605X AX1800 Wi-Fi 6 Range Extender
• 1 × Quick Installation Guide

Important Note

RE605X is officially an AX1800 range extender, not AX3000. It provides theoretical wireless rates of up to 1201Mbps on 5GHz and 574Mbps on 2.4GHz.

The advertised AX1800 rating represents the combined theoretical link rates of both Wi-Fi bands. It does not mean that a single device will receive an 1800Mbps internet connection.

TP-Link has released the RE605X in multiple hardware revisions. Dimensions, power consumption, EasyMesh / OneMesh implementation and some firmware features can differ between revisions. Check the hardware version printed on QUTECH's physical retail box when revision-specific specifications are required.

Current V4 documentation lists EasyMesh compatibility. Some older RE605X hardware or regional firmware may instead use TP-Link OneMesh terminology.

Actual Wi-Fi speed and coverage depend on the main router, internet connection, building layout, interference, connected devices and installation position.

Plug type varies by sales region. Confirm the physical plug fitted to QUTECH stock before advertising a specific UK, EU, US or other regional plug.

Ideal For

• Extending Home Wi-Fi Coverage
• Eliminating Wi-Fi Dead Zones
• Wi-Fi 6 Home Networks
• EasyMesh Networks
• Multi-Room Homes
• Apartments
• Home Offices
• 4K Streaming
• Online Gaming
• Smart TVs
• Gaming Consoles
• Gigabit Wired Devices
• Access Point Installations
